联系合作Ratio 减速比 | 3 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | 150 | |||
Weight（重量） | 0.24kg | 0.3kg | |||||||||||||
Number of gear trains 减速级数 |
2 |
3 |
4 | ||||||||||||
Nominal torque 额定转矩 |
10N.m | ||||||||||||||
Ultimate torque 极限转矩 |
15N.m | ||||||||||||||
Efficiency 效率 | 81% | 73% | 66% | ||||||||||||
Backlash 回差 | 4 deg | 3.5deg | 2.5deg | ||||||||||||
Ratio 减速比 | 3 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | 150 | |
FL57STH41-60JB | Torque(N.m) (at 300rpm) 转矩(N.m) (在 300rpm) | 1.02 | 2.55 | 4.25 | 5.1 | 7.66 | 9.19 | --- | --- | --- | --- | --- | --- |
speed(rpm)转速(rpm) | 100 | 40 | 24 | 20 | 12 | 10 | --- | --- | --- | --- | --- | --- | |
FL57STH51-60JB | Torque(N.m) (at 300rpm) 转矩(N.m) (在 300rpm) | 1.78 | 4.25 | 7.08 | 8.5 | --- | --- | --- | --- | --- | --- | --- | --- |
speed(rpm)转速(rpm) | 100 | 40 | 24 | 20 | --- | --- | --- | --- | --- | --- | --- | --- | |
FL57STH56-60JB | Torque(N.m) (at 300rpm) 转矩(N.m) (在 300rpm) | 1.84 | 4.61 | 7.69 | 9.23 | --- | --- | --- | --- | --- | --- | --- | --- |
speed(rpm)转速(rpm) | 100 | 40 | 24 | 20 | --- | --- | --- | --- | --- | --- | --- | --- | |
FL57STH76-60JB | Torque(N.m) (at 300rpm) 转矩(N.m) (在 300rpm) | 2.91 | 7.29 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
speed(rpm)转速(rpm) | 100 | 40 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | |

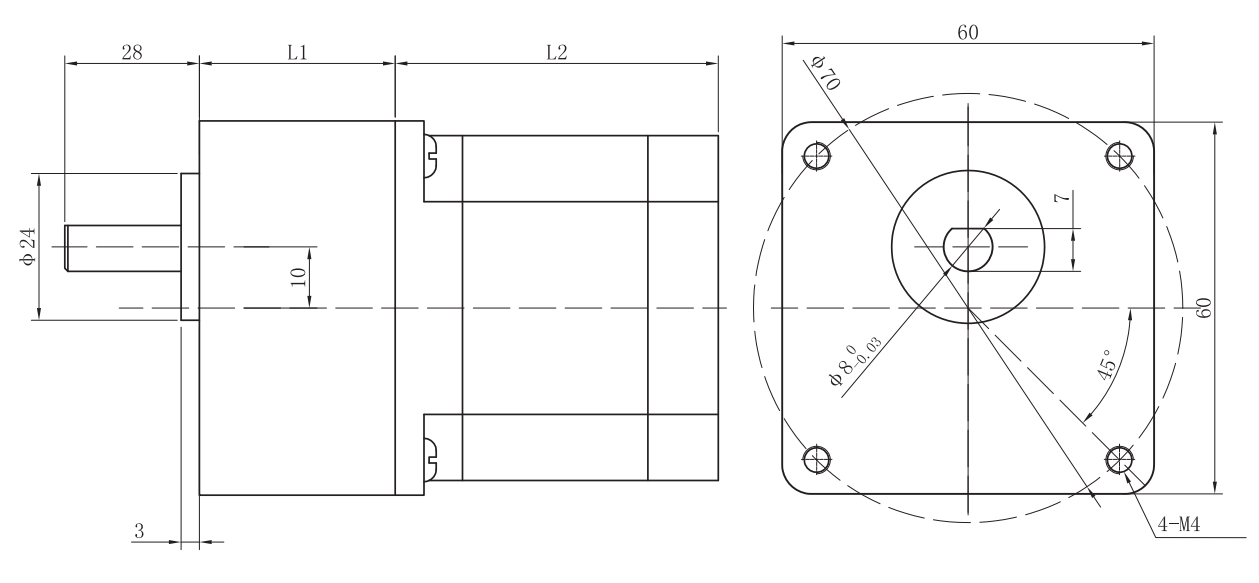

RATIO 减速比 | L2(mm) | L1(mm) | |||
FL57STH41-60JB | FL57STH51-60JB | FL57STH56-60JB | FL57STH76-60JB | ||
3---15 | 40 | 50 | 55 | 75 | 32 |
25---150 | 40 | ||||
该款蓝颜gtv 可以根据客户需求定制。
The motor can be designed &manufactured with customized request.
